Bootstrap ArgoCD with GitHub Actions

July 30, 2025

ArgoCD provides a declarative, GitOps continuous reconciliation solution for Kubernetes.

By bootstrapping ArgoCD with GitHub Actions, you can automate the installation and configuration of ArgoCD on your Azure Kubernetes Service (AKS) clusters.

In this post, I’ll walk through setting up a GitHub App for ArgoCD, configuring repository secrets and environment variables, creating the GitHub Actions workflow, and enabling Microsoft Entra ID SSO via OpenID Connect (OIDC).

Prerequisites

Before we begin, ensure you have:

  • An existing Azure tenant and subscription
  • A Landing Zone in Azure with managed identities and GitHub federation
  • An Azure Kubernetes Service cluster in that Landing Zone (e.g. d-automacorp-aks in Resource Group d-automacorp-rg)
  • A subscription‑vending process already wired to your GitHub repo
  • A GitHub Organization (e.g. AutomaCorp)
  • A GitHub repository (automacorp/lz-automacorp) for deployments and ArgoCD manifests

1. Install GitHub App for ArgoCD

First, create a GitHub App to allow ArgoCD to read your repo contents securely.

  1. Navigate to https://github.com/organizations/AutomaCorp/settings/apps and click New GitHub App.
  2. Name: argocd-management-app
  3. Homepage URL: https://github.com/AutomaCorp
  4. Description (Optional): Authentication between ArgoCD and GitHub
  5. Leave Callback URL and Setup URL & Redirect blank.
  6. Webhook events: Uncheck Active (we don’t need webhooks).
  7. Permissions:
    • Repository → Contents: Read-only
    • Repository → Metadata: Read-only
    • All other permissions: No access
  8. Where to install: Only on this account (AutomaCorp).
  9. Click Create GitHub App.
  10. After creation, click Install App → Only select repositories → choose automacorp/lz-automacorp → Install.
  11. Under Private keys, click Generate a private key. Save the downloaded key.pem.
  12. Back in Install App, confirm the app is installed on the automacorp/lz-automacorp repo.
  13. Note the App ID and Installation ID for later.

2. Add Secrets to the GitHub Repository

Store the App credentials as repository secrets so that GitHub Actions can authenticate to GitHub.

gh auth login

gh secret set ARGOCD_APP_ID \
  --body 'YOUR_APP_ID' \
  --repo automacorp/lz-automacorp

gh secret set ARGOCD_APP_PRIVATE_KEY \
  --body "$(cat key.pem)" \
  --repo automacorp/lz-automacorp

gh secret set ARGOCD_APP_INSTALLATION_ID \
  --body 'YOUR_INSTALLATION_ID' \
  --repo automacorp/lz-automacorp

3. Configure Environment Variables for the “Manage ArgoCD” Workflow

Define runtime variables per environment to target your AKS cluster and resource group.

gh variable set CLIENT_ID \
  --body 'YOUR_CLIENT_ID' \
  --repo automacorp/lz-automacorp \
  --env dev

gh variable set RESOURCE_GROUP \
  --body 'd-automacorp-rg' \
  --repo automacorp/lz-automacorp \
  --env dev

gh variable set CLUSTER_NAME \
  --body 'd-automacorp-aks' \
  --repo automacorp/lz-automacorp \
  --env dev

4. Add the "Manage ArgoCD" GitHub Actions Workflow

Create .github/workflows/manage-argocd.yml in your repository:

name: Manage ArgoCD

on:
  schedule:
    - cron: '0 0 * * *'
  workflow_dispatch: {}

permissions:
  id-token: write
  contents: read

jobs:
  manage-argocd:
    environment: dev
    runs-on: ubuntu-latest
    env:
      ARGOCD_REPO_URL: ${{ github.server_url }}/${{ github.repository }}.git

    steps:
      - name: Checkout code
        uses: actions/checkout@v3

      - name: Azure Login
        uses: azure/login@v2
        with:
          client-id:       ${{ vars.CLIENT_ID }}
          tenant-id:       ${{ vars.TENANT_ID }}
          subscription-id: ${{ vars.SUBSCRIPTION_ID }}

      - name: Setup kubectl
        uses: azure/setup-kubectl@v3

      - name: Setup kubelogin for AAD auth
        uses: azure/use-kubelogin@v1
        with:
          kubelogin-version: 'v0.2.8'

      - name: Set AKS kubectl context
        uses: azure/aks-set-context@v2
        with:
          resource-group: ${{ vars.RESOURCE_GROUP }}
          cluster-name:   ${{ vars.CLUSTER_NAME }}
          subscription:   ${{ vars.SUBSCRIPTION_ID }}
          use-kubelogin:  true

      - name: Convert kubeconfig for kubelogin
        run: kubelogin convert-kubeconfig -l azurecli

      - name: Add & update Argo Helm repo
        run: |
          helm repo add argo https://argoproj.github.io/argo-helm || true
          helm repo update

      - name: Detect existing ArgoCD release
        id: detect
        run: |
          installed=$(helm list -n argocd --filter '^argocd$' -q)
          echo "installed=$installed" >> $GITHUB_OUTPUT

      - name: Bootstrap ArgoCD if missing
        if: ${{ steps.detect.outputs.installed == '' }}
        run: |
          echo "→ ArgoCD not found → bootstrapping"
          helm install argocd argo/argo-cd \
            --namespace argocd \
            --create-namespace \
            -f argocd/manifests/values.yml

          echo "→ waiting for server pod"
          kubectl wait \
            --namespace argocd \
            --for=condition=ready pod \
            --selector=app.kubernetes.io/name=argocd-server \
            --timeout=120s

          echo "→ install ArgoCD CLI"
          curl -sSL https://github.com/argoproj/argo-cd/releases/latest/download/argocd-linux-amd64 \
            -o /tmp/argocd
          sudo install -m 755 /tmp/argocd /usr/local/bin/argocd

          echo "→ determining Argo CD server address"
          ARGO_HOST=$(kubectl get svc argocd-server -n argocd \
            -o jsonpath='{.status.loadBalancer.ingress[0].ip}')
          echo "→ ARGO_HOST=$ARGO_HOST"

          echo "→ login to ArgoCD"
          max_attempts=5
          attempt_num=1
          until argocd login $ARGO_HOST \
              --username admin \
              --password "$(kubectl -n argocd get secret argocd-initial-admin-secret -o jsonpath='{.data.password}' | base64 -d)" \
              --insecure; do
            echo " → login failed (attempt $attempt_num/$max_attempts), retrying in 5s…"
            if [ "$attempt_num" -ge "$max_attempts" ]; then
              echo " → login failed after $max_attempts attempts, aborting"
              exit 1
            fi
            attempt_num=$((attempt_num + 1))
            sleep 5
          done

          echo "→ add GitHub repo & apply projects"
          printf '%s\n' "${{ secrets.ARGOCD_APP_PRIVATE_KEY }}" > key.pem
          argocd repo add "$ARGOCD_REPO_URL" \
            --github-app-id ${{ secrets.ARGOCD_APP_ID }} \
            --github-app-installation-id ${{ secrets.ARGOCD_APP_INSTALLATION_ID }} \
            --github-app-private-key-path ./key.pem

          kubectl apply -f argocd/projects/

      - name: Skip bootstrap if already installed
        if: ${{ steps.detect.outputs.installed != '' }}
        run: echo "→ ArgoCD already installed; skipping"

Remember to create and populate your ArgoCD helm values file (argocd/manifests/values.yml) and projects folder (argocd/projects/).

5. Enable Microsoft Entra ID SSO with ArgoCD

To secure ArgoCD’s UI with Entra ID, register an Entra ID application and federate AKS OIDC.

5.1 Create the Entra ID App

az ad app create \
  --display-name 'ArgoCD-OIDC' \
  --web-redirect-uris 'https://argocd.automacorp.com/auth/callback' \
  --sign-in-audience AzureADMyOrg \
  --query '{appId: appId, objectId: id}' \
  -o json

5.2 Retrieve the AKS OIDC Issuer URL

az aks show \
  --resource-group d-automacorp-rg \
  --name d-automacorp-aks \
  --query 'oidcIssuerProfile.issuerUrl' \
  --output tsv

5.3 Federate the ArgoCD Service account

az ad app federated-credential create \
  --id 'objectId' \
  --parameters '{
    "name": "argocd-federation",
    "issuer": "'aks-oidc-issuer-url'",
    "subject": "system:serviceaccount:argocd:argocd-server",
    "audiences": ["api://AzureADTokenExchange"]
  }'

5.4 Grant Microsoft Graph Permissions

az ad app permission add \
  --id 'objectId' \
  --api 00000003-0000-0000-c000-000000000000 \
  --api-permissions e1fe6dd8-ba31-4d61-89e7-88639da4683d=Scope

az ad app permission grant \
  --id 'objectId' \
  --api 00000003-0000-0000-c000-000000000000 \
  --scope User.Read

az ad app permission admin-consent \
  --id 'objectId'

5.5 Configure Security Groups for ArgoCD Roles

az ad group create \
  --display-name 'ArgoCD-Admins' \
  --mail-nickname 'argocd-admins'

az ad group member add \
  --group 'ArgoCD-Admins' \
  --member-id 'userObjectId'

az ad app update \
  --id 'objectId' \
  --set groupMembershipClaims=SecurityGroup

In your ArgoCD Helm values.yml, set oidc.config.clientID to the appId, and map the ArgoCD-Admins group to the admin role.

Populate your argocd/projects/ folder with AppProject, Application/ApplicationSet-manifests and run the workflow.

You can now log in with Entra ID in the ArgoCD portal:

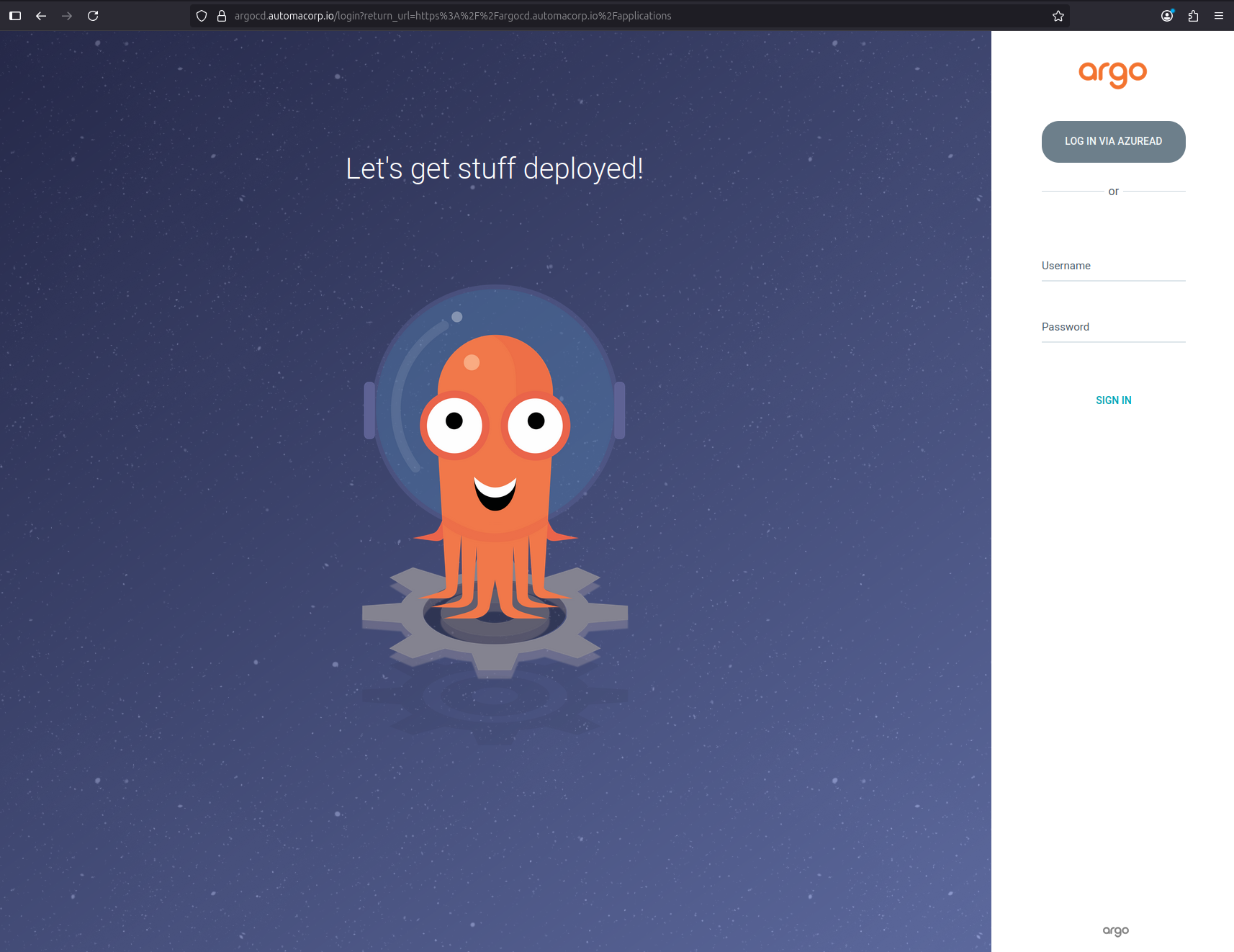

Login Portal

Your apps should now appear automagically:

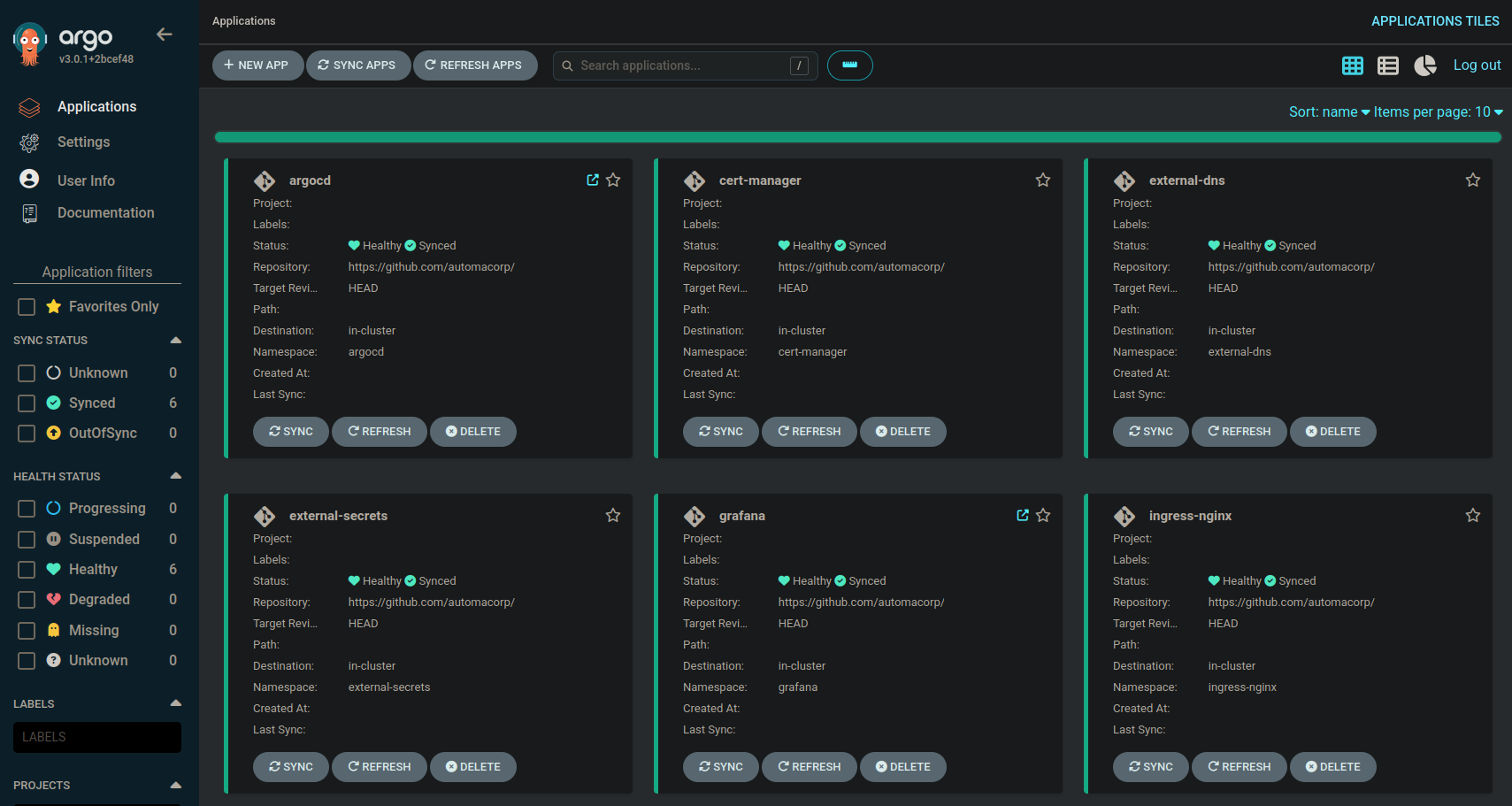

Apps
